FRAME FEATURES
DEFORMATION UNDER LOAD: PROFILE VS. TUBE
COMPARISON OF DEFORMATION OF A CONSTANT SECTION PROFILE AND A TUBE

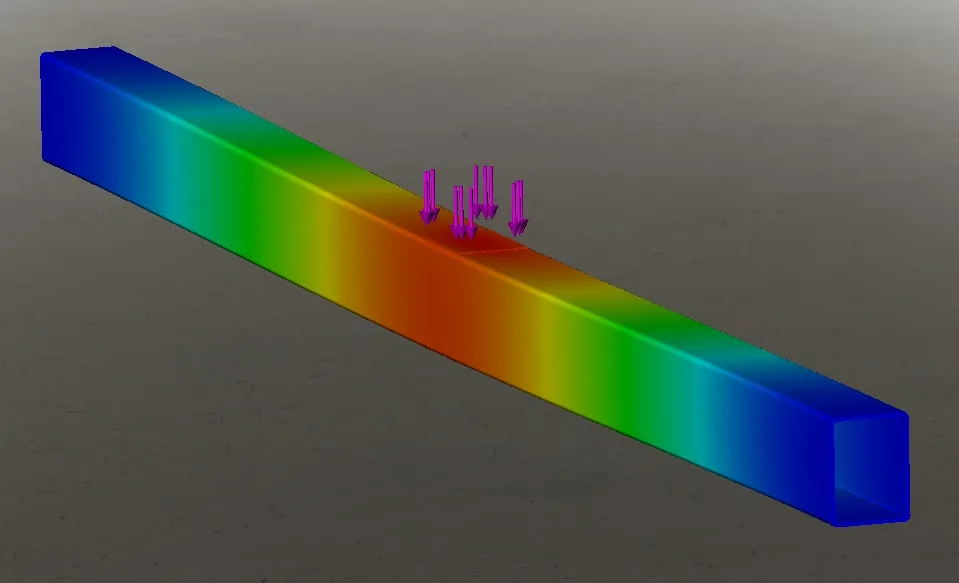

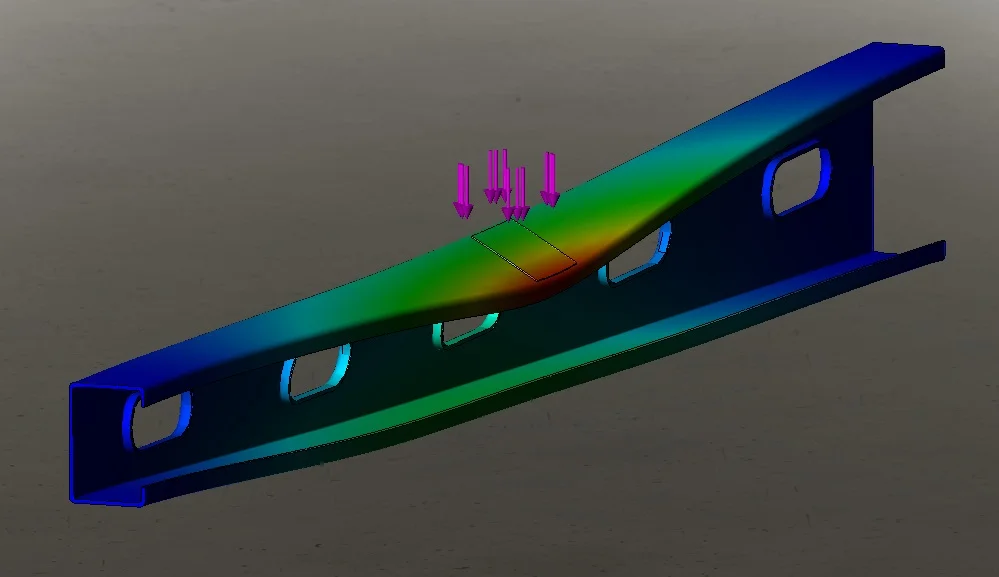

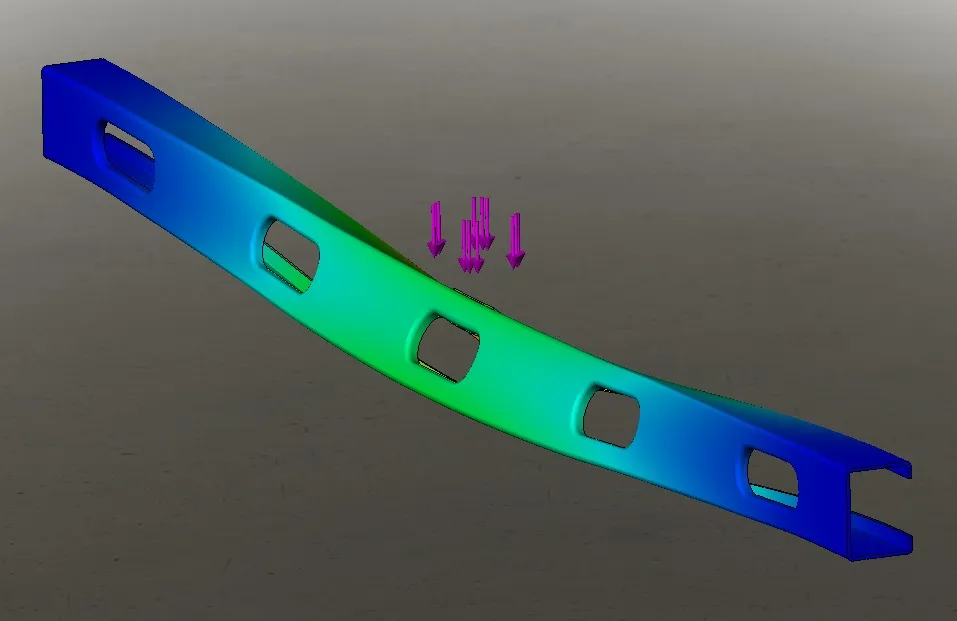

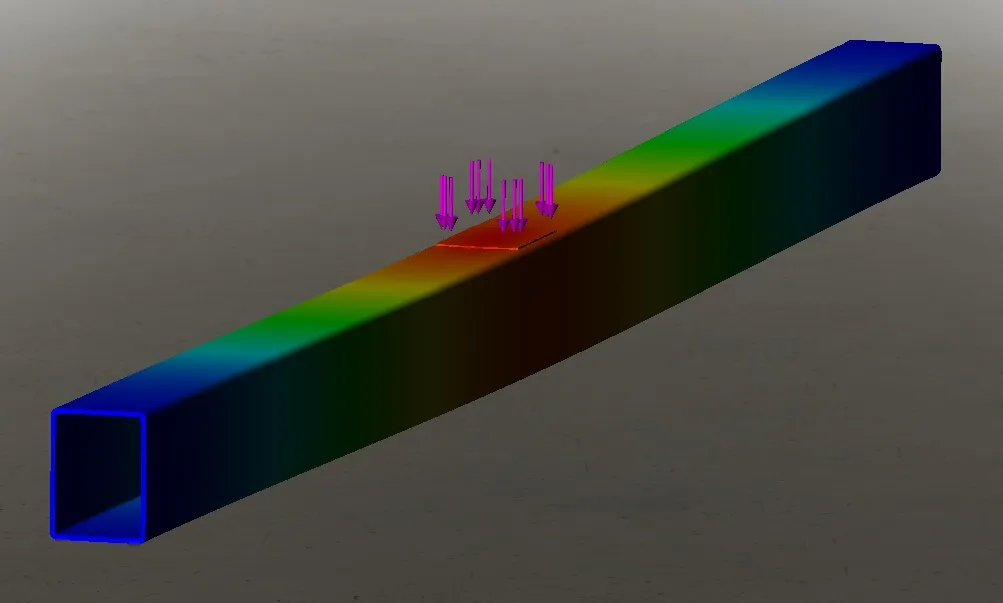

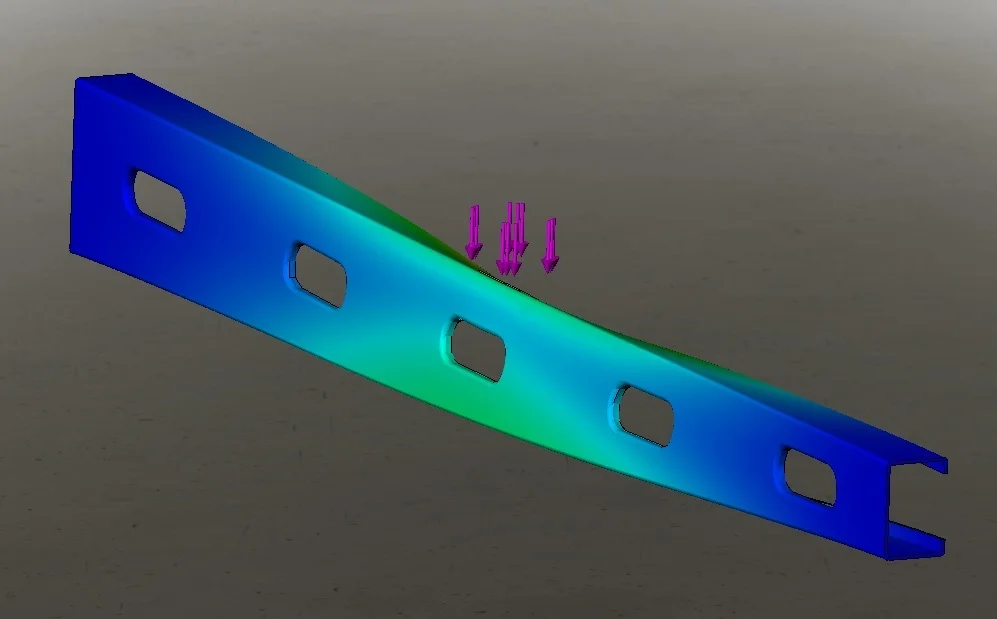

Simulation of the deformation of a steel spar tube compared to a conventional automotive steel profile (used by most trailer manufacturers due to low material and trailer construction costs) reinforced by perforation in straight and extended sections.
INITIAL DATA
Pipe and profile material – 09G2S or equivalent S355. Wall thickness 3 mm. The dimensions of the profile and pipe are similar, 80x60x3 mm. The profile has an additional perforation to reinforce the wall. The load acting on the centers of the profile and pipe is the same: 100 kg.
SIMULATION RESULTS
Loading: maximum profile deformation value - 1.64 mm, maximum tube deformation value - 0.16 mm.
THE PROFILE DEFORMATION IS 10 TIMES GREATER THAN THE TUBE DEFORMATION
under the same loads, materials and dimensions. The visualization of the deformation result shown is exaggerated by 50 times.
VARIABLE SECTION PROFILE
with perforated reinforcements is subject to 5.7 times greater deformation than a smaller pipe, which is significantly better than a profile with a constant cross section, but still inferior in strength to a pipe of almost the same weight.

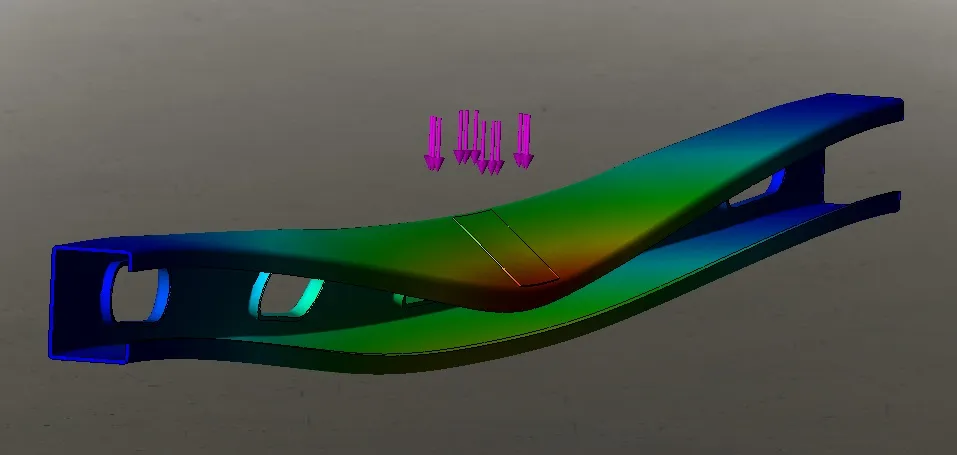

DEFORMATION OF THE PROFILE WITH VARIABLE SECTION
The high part of the section is 160 x 60 mm, the wall is 3 mm, the lower part of the section is 90 x 60 mm and the wall is 3 mm thick. The maximum deformation value is 0.91 mm.
OBJECTIVE DISADVANTAGES OF STEEL TUBE FRAME
This means more weight, more complex manufacturing, a larger surface area, or more effort in galvanizing. The tube is less versatile, more labor-intensive to process, takes up more space during transport and storage, unlike a profile, therefore the cost of a tube frame is higher than that of a profile frame. From a manufacturer's point of view, it is faster and cheaper to make a frame from steel profiles, which is why profile frames have become so popular in the EU, unlike the USA, where the term "heavy duty" reigns supreme. Accordingly, tube frames completely dominate. If you need a really high-strength and durable frame, the choice is obvious.

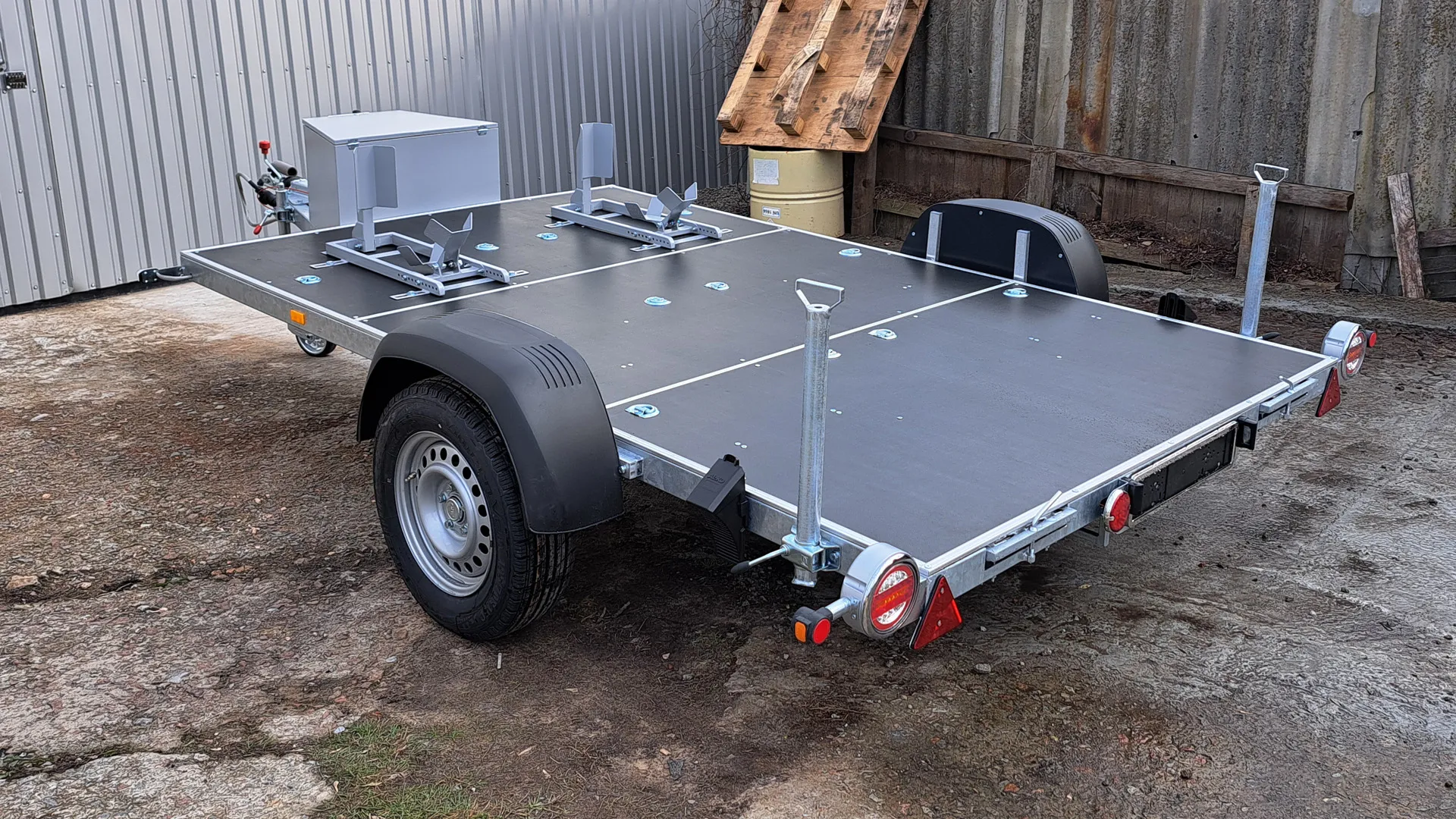

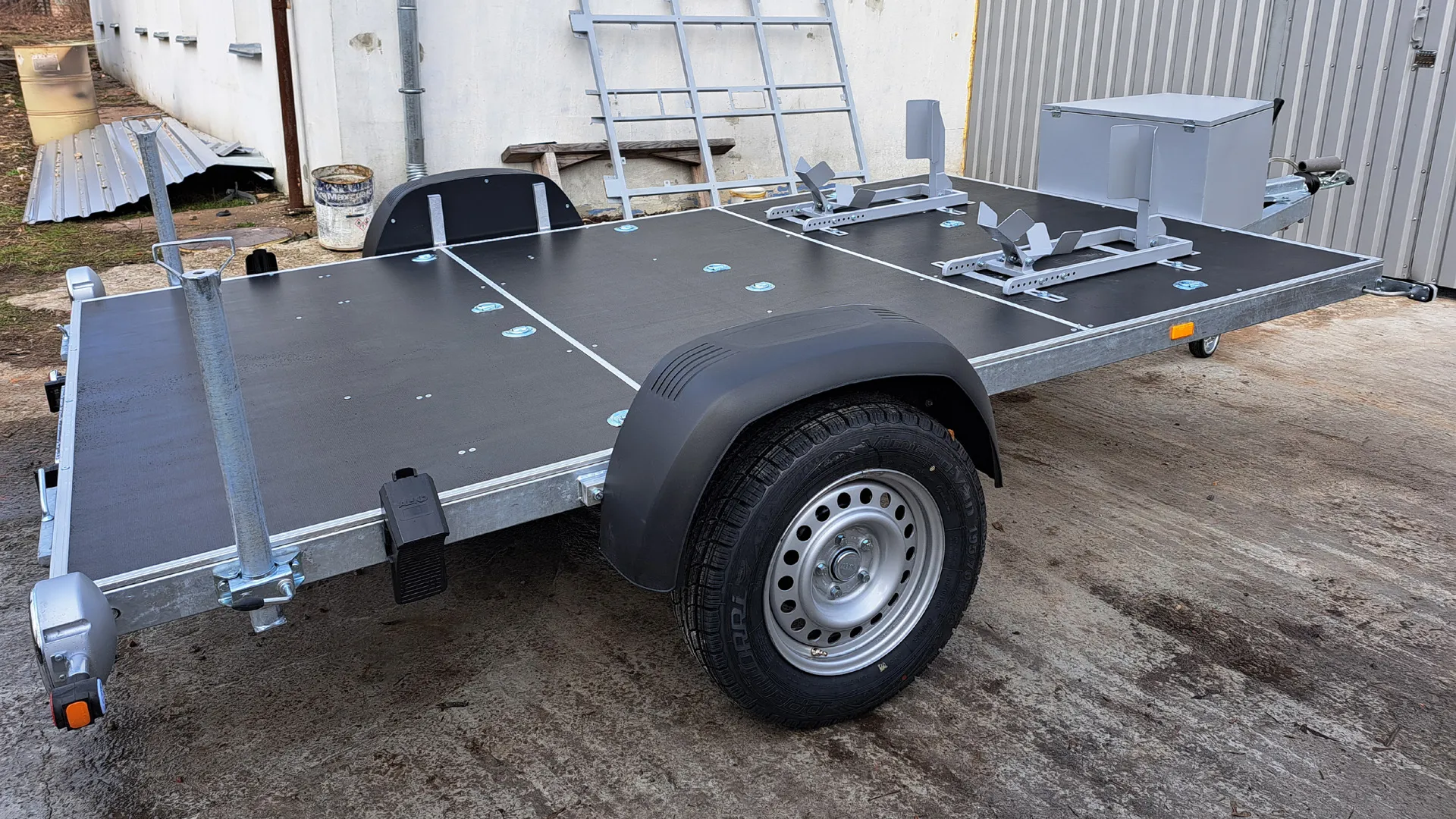

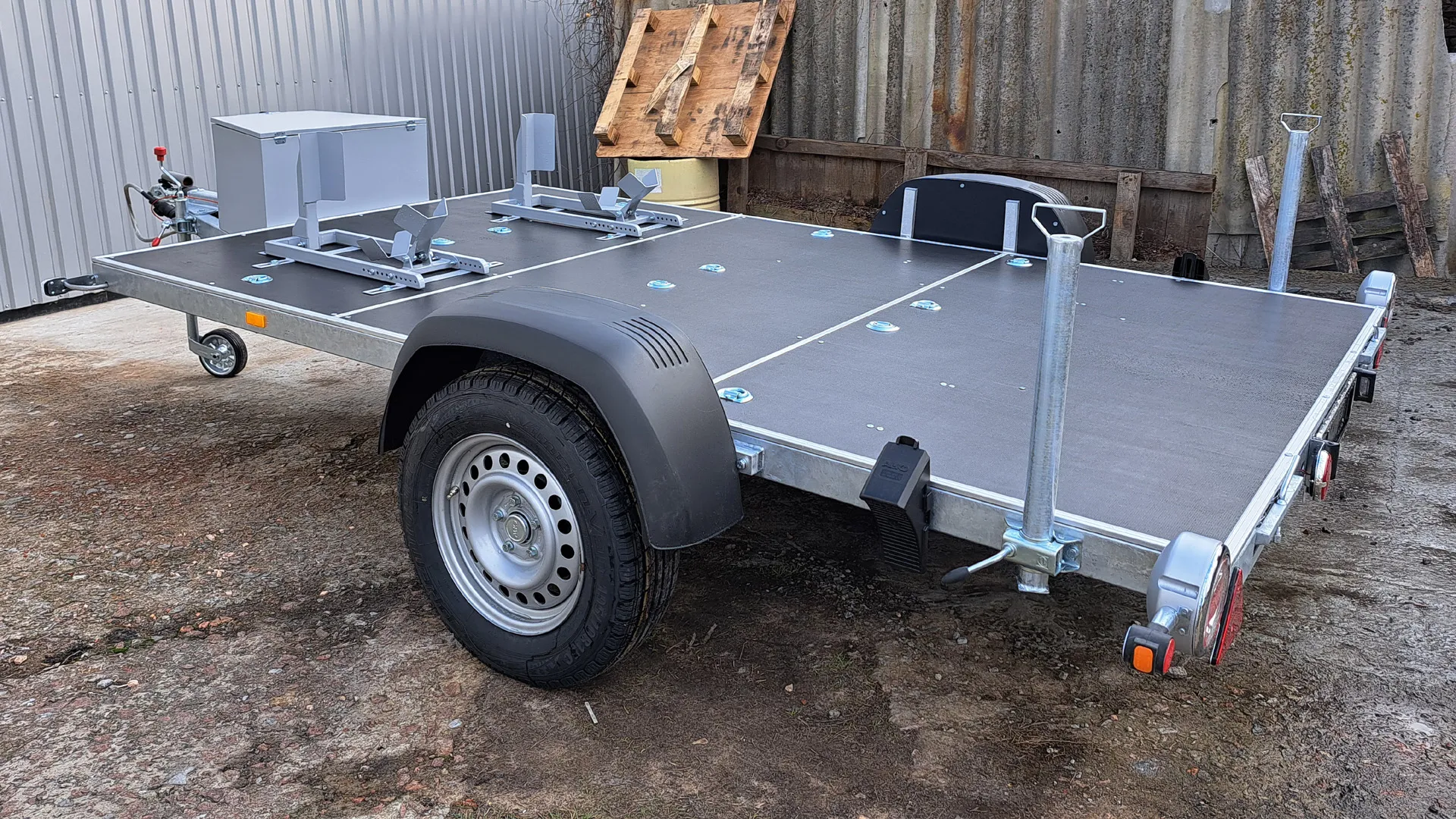

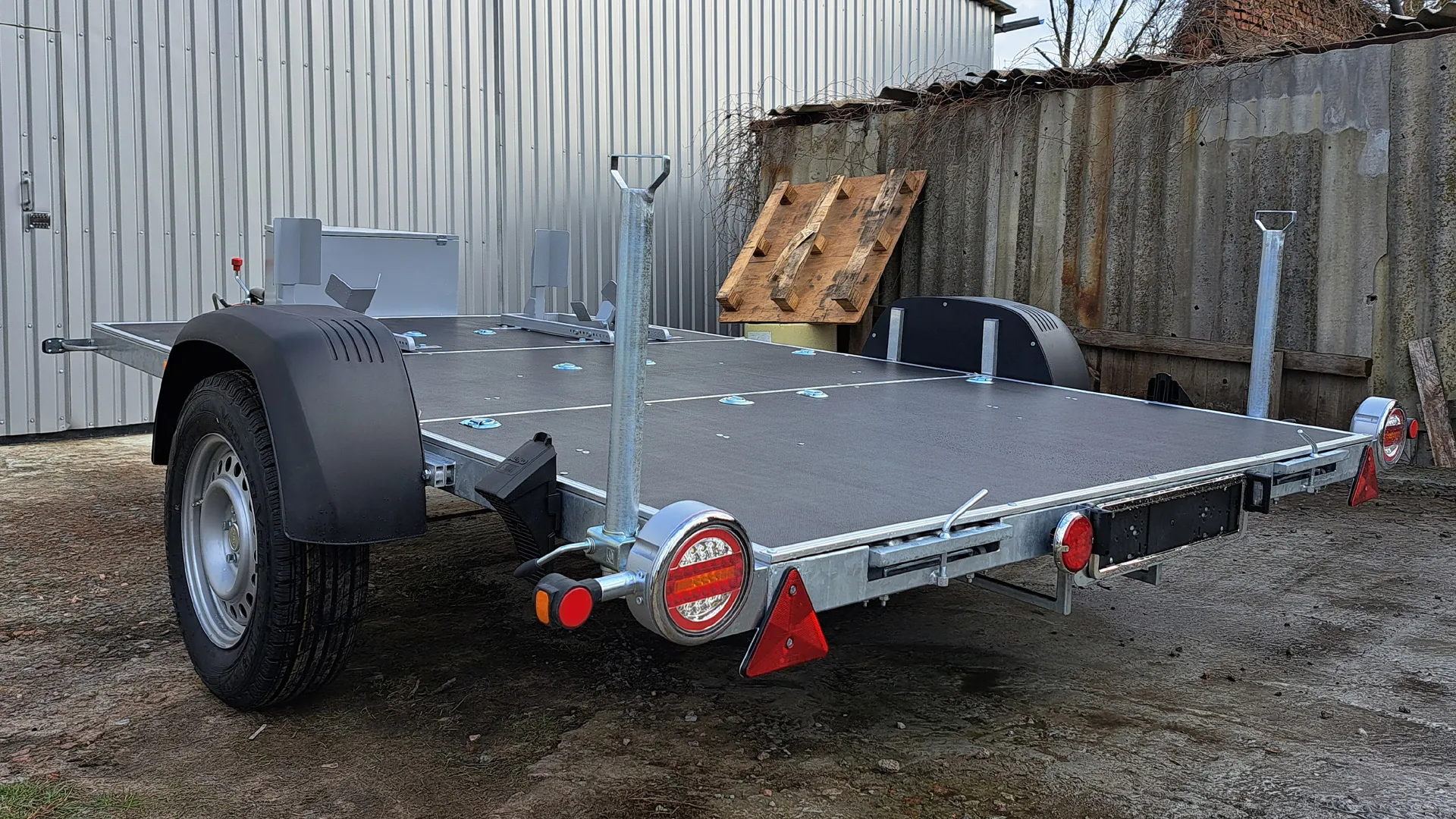

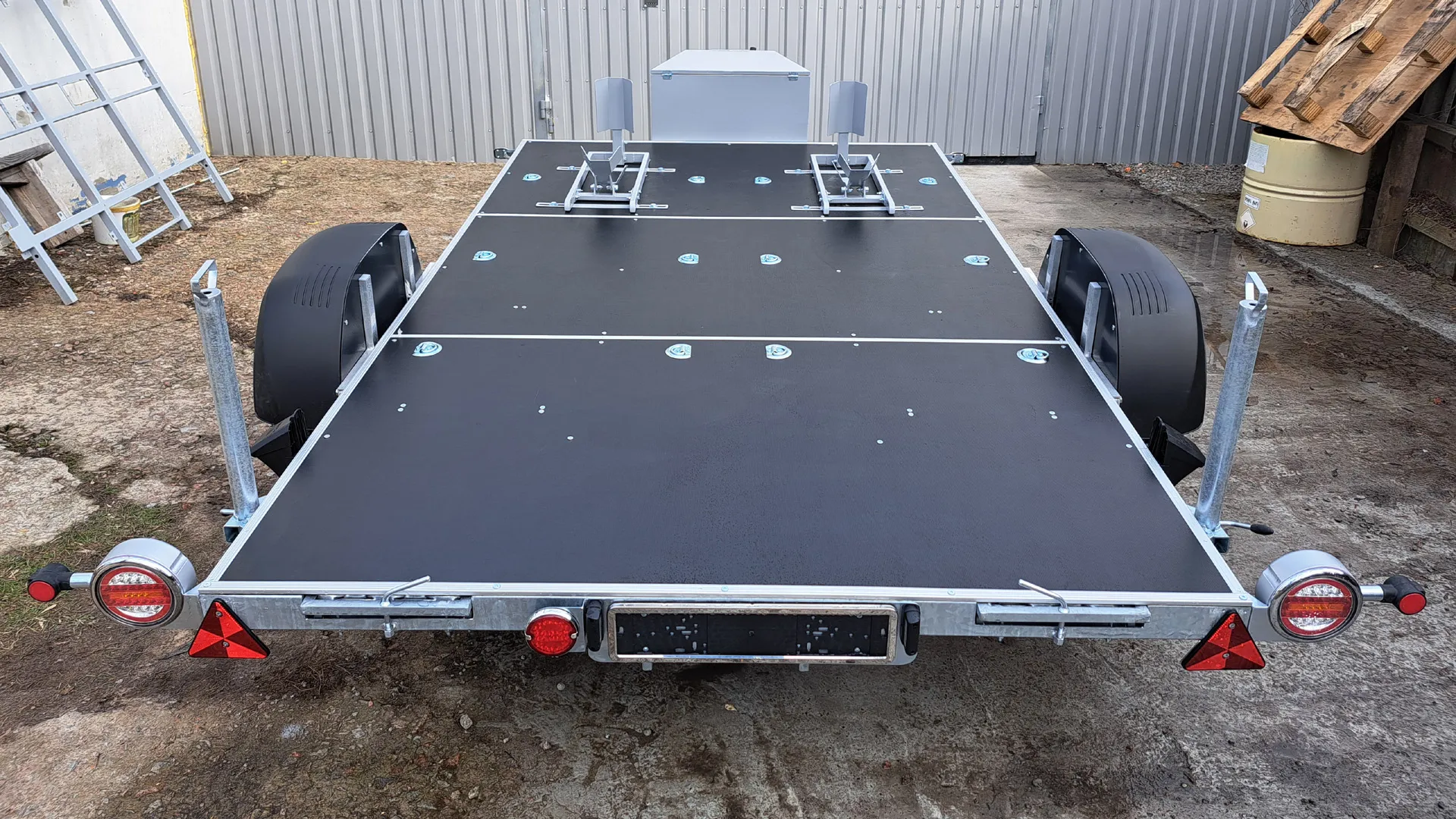

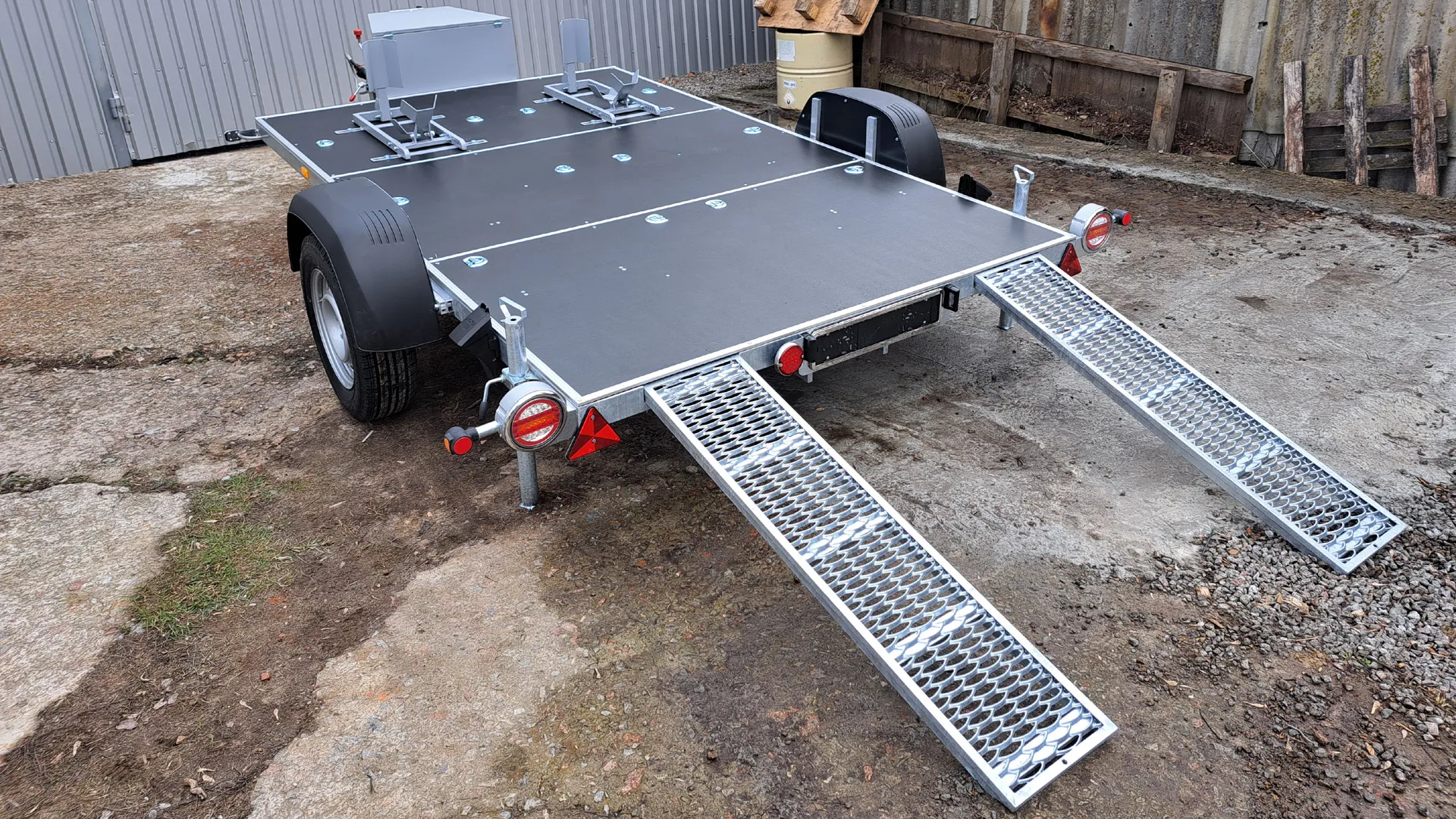

GALLERY
DIMENSIONS
KEY FEATURES

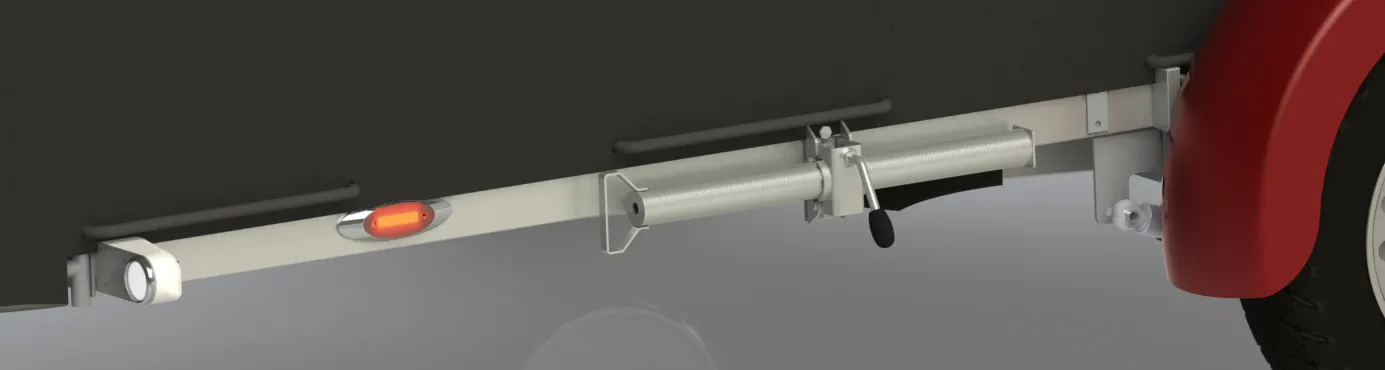

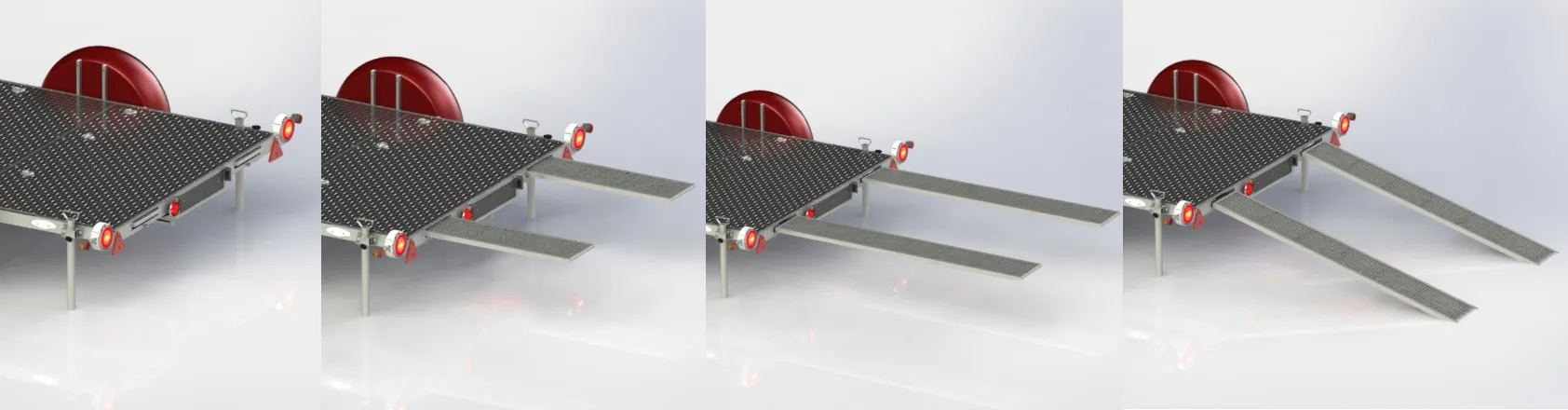

ROLLER SYSTEM
for extending and retracting ladders – ladders can be easily pulled out and retracted from under the low-draft trailer with one hand

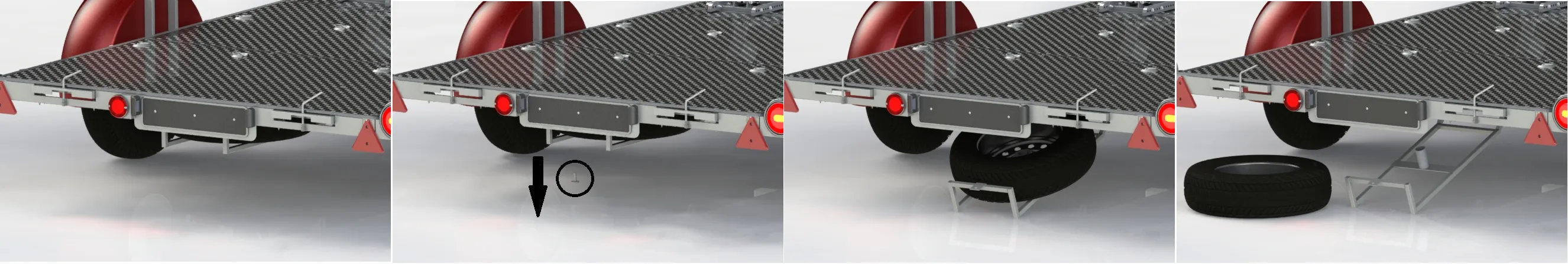

SPARE WHEEL UNDERBODY
Equipped with an access system with "vehicle" position at the rear of the trailer, under the floor - easily removable but at the same time protected from theft (unlike spare wheels mounted on the outside of the trailer).
FASTENING THE REAR SUPPORTS
During transport, the trailer is in a horizontal position parallel to the platform and can be easily moved vertically to secure the trailer during loading and unloading. This is done to prevent spontaneous lowering of the stops during travel (this is possible if the stop clamp is not tightened sufficiently; during a long journey, the tension of the clamp may loosen and the stop may fall down).
Galvanized protective housings for the rear combination headlights – welded from polished steel tube with a thickness of 4 mm.
The headlights are covered with plastic housings and equipped with chrome-plated edges to give an aesthetic look and to hide and protect the cables.

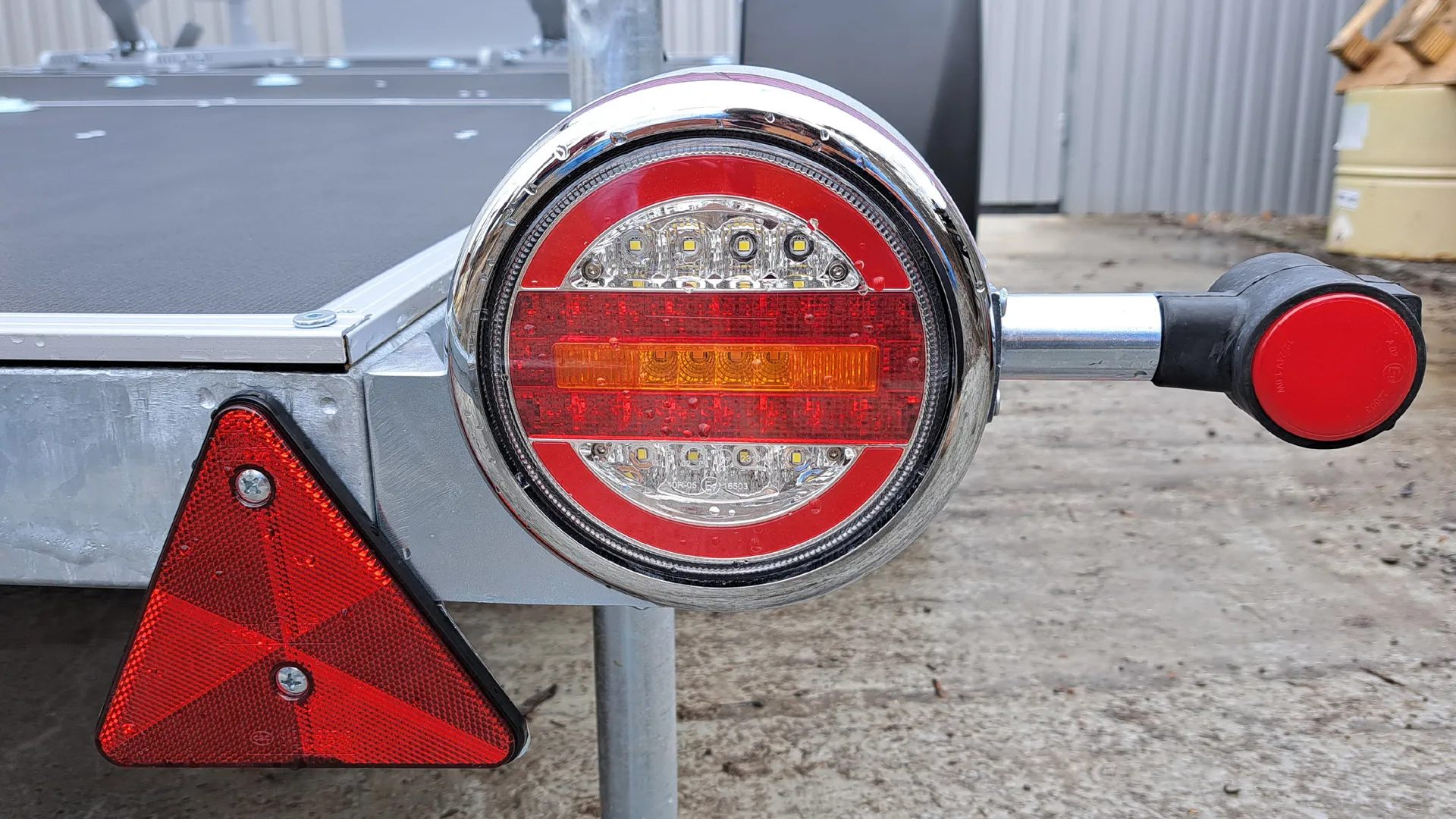

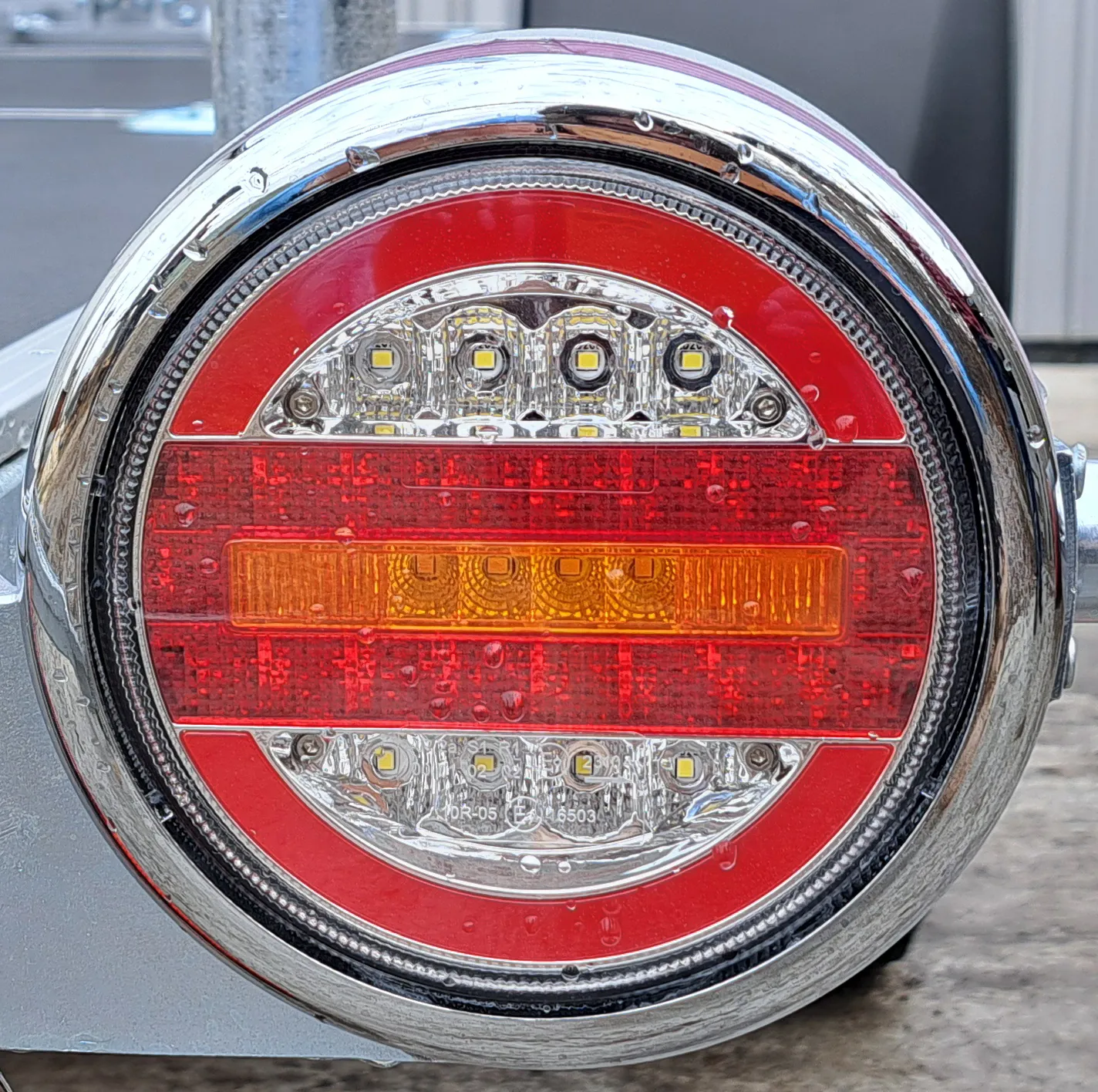

Taillights with chrome-plated edges in retro style, in LED technology with dynamic indicator light.

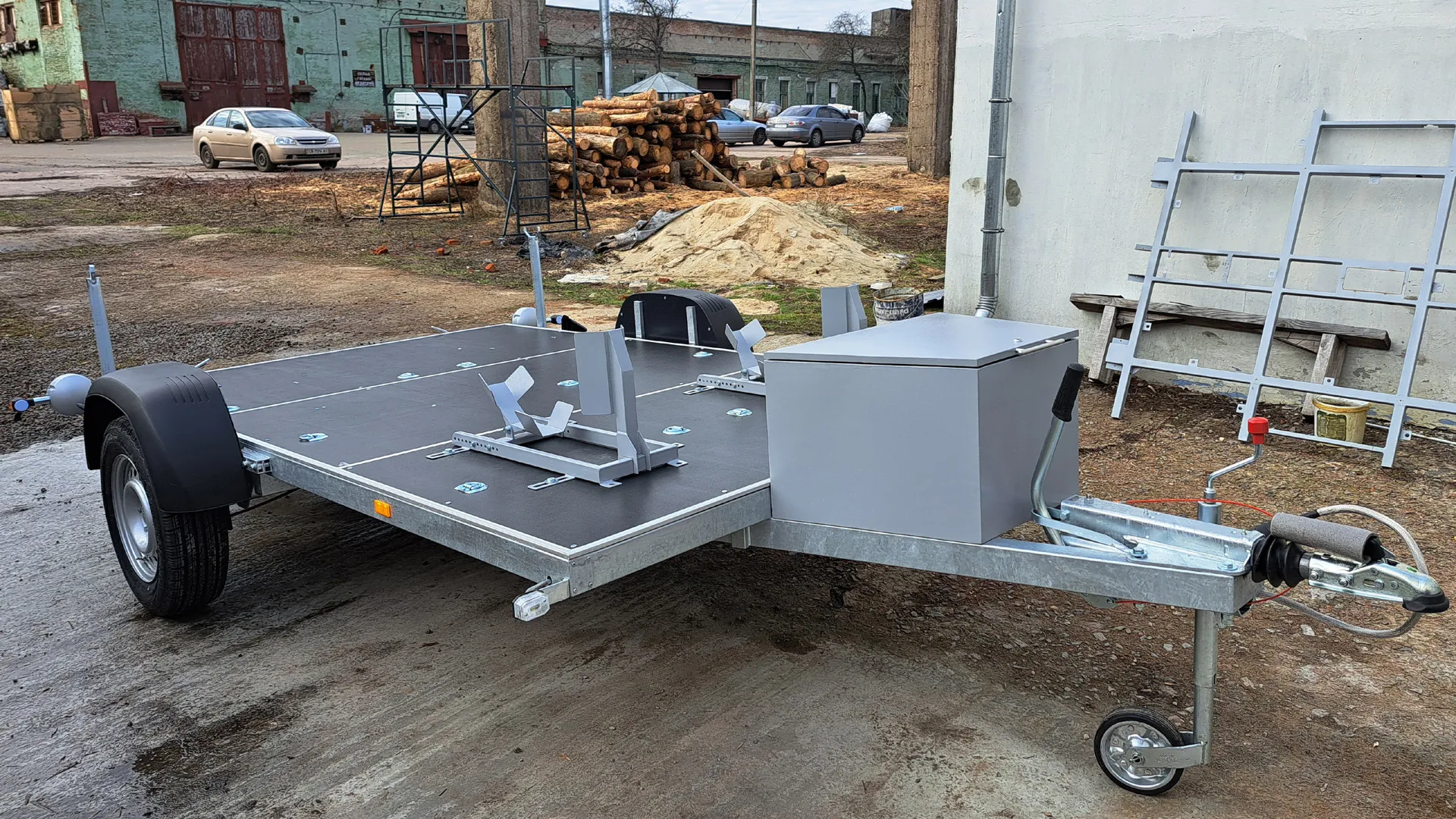

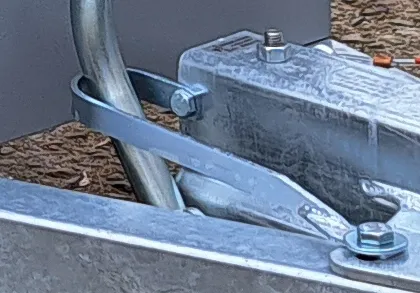

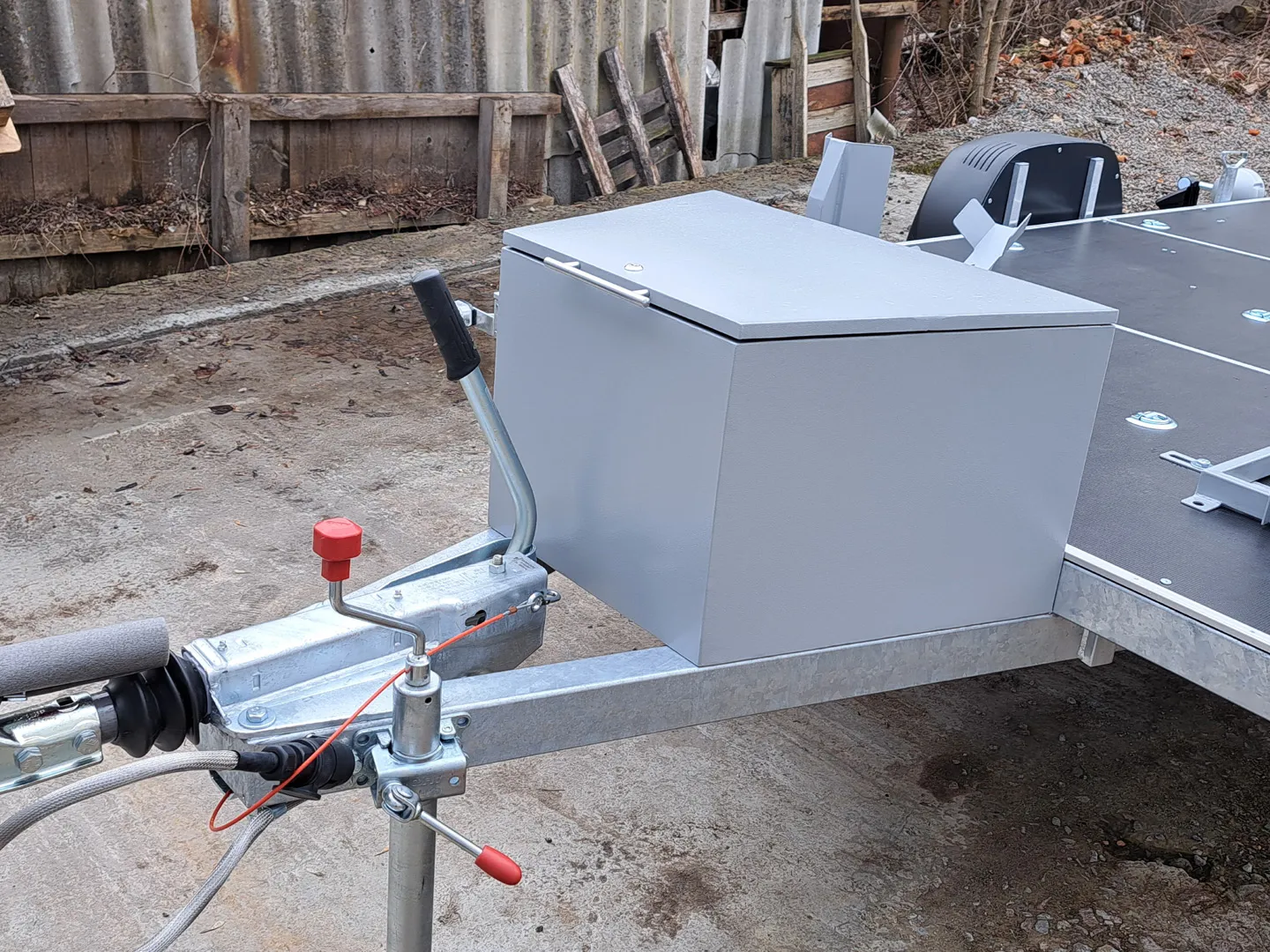

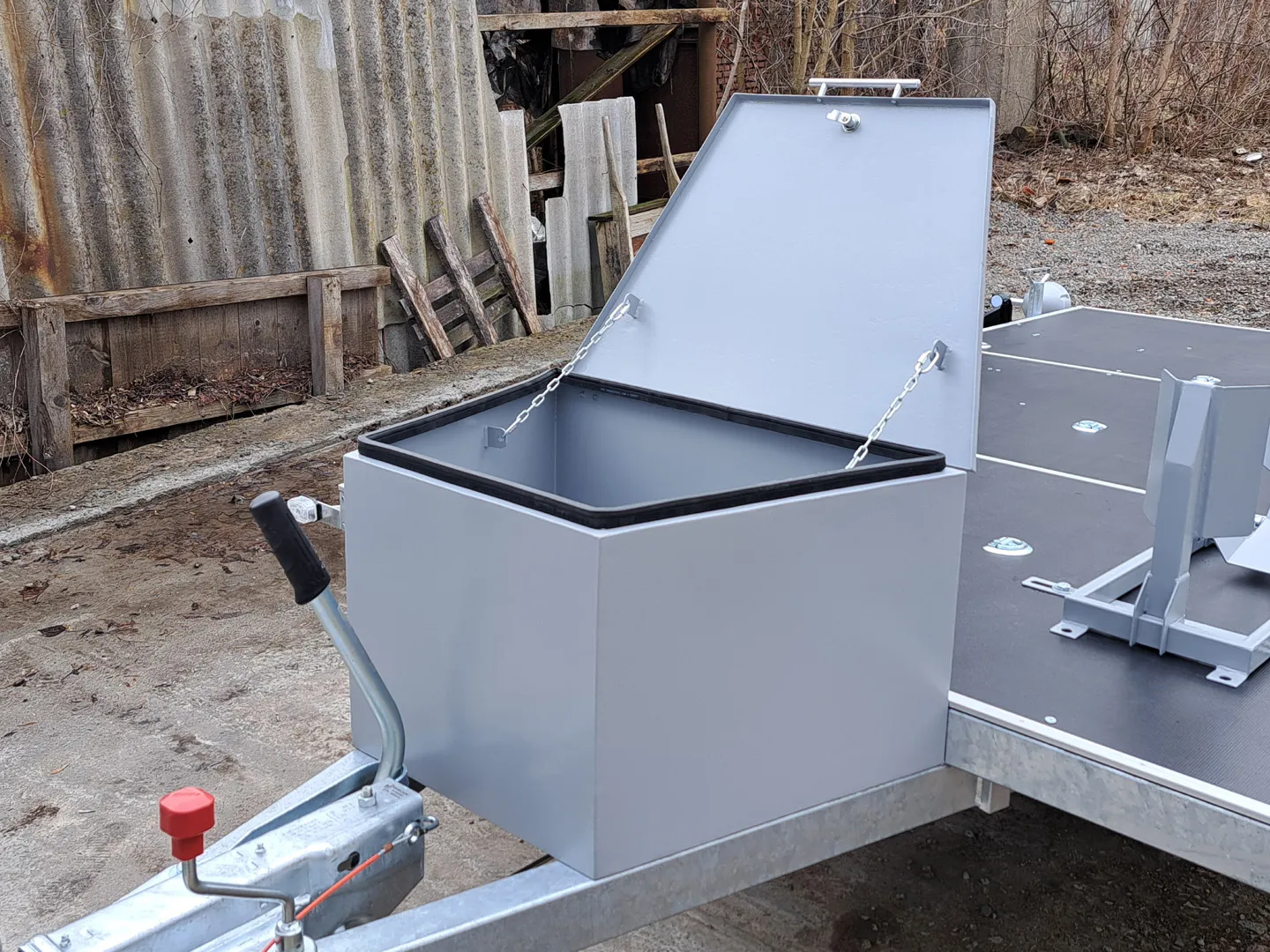

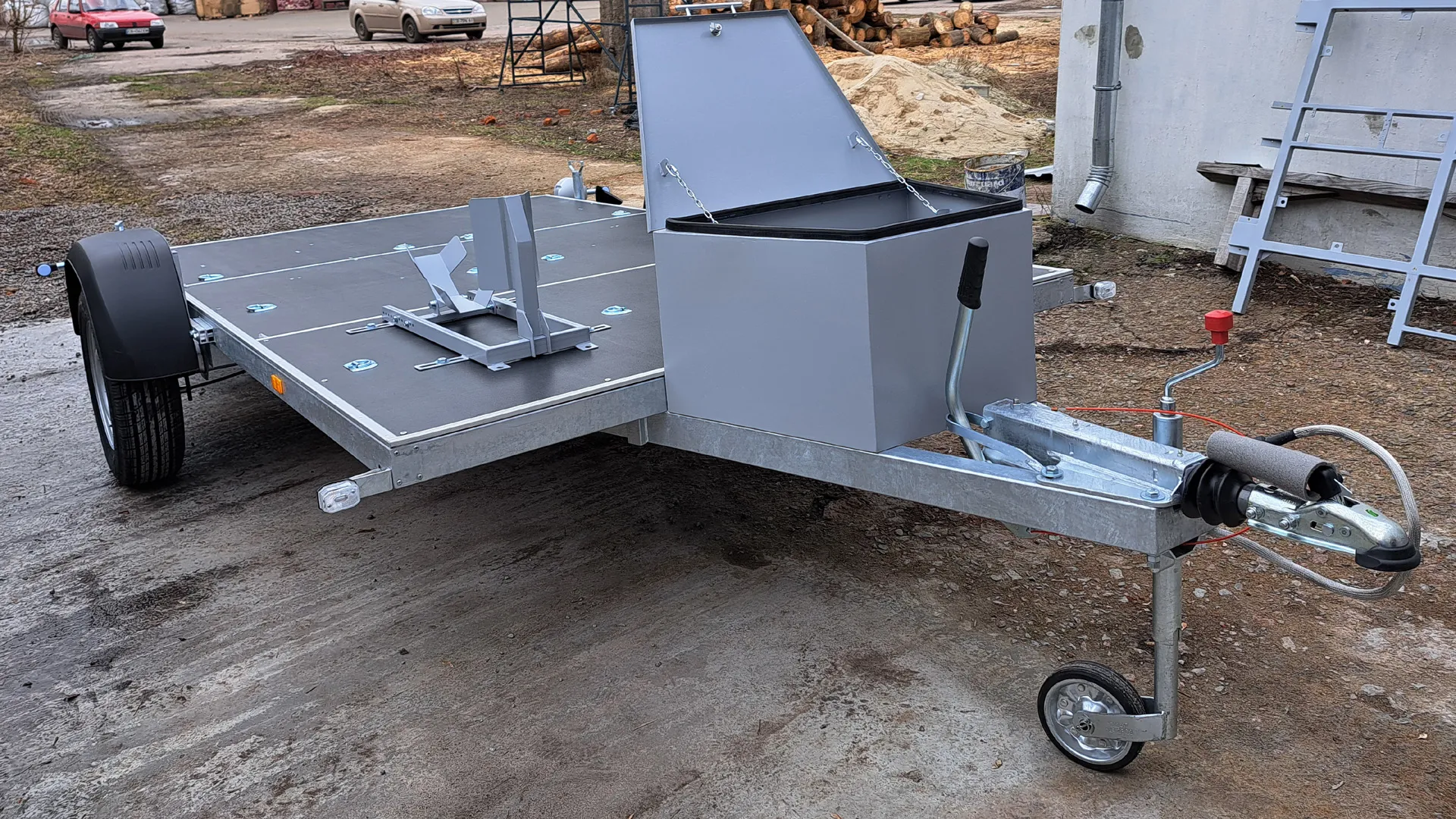

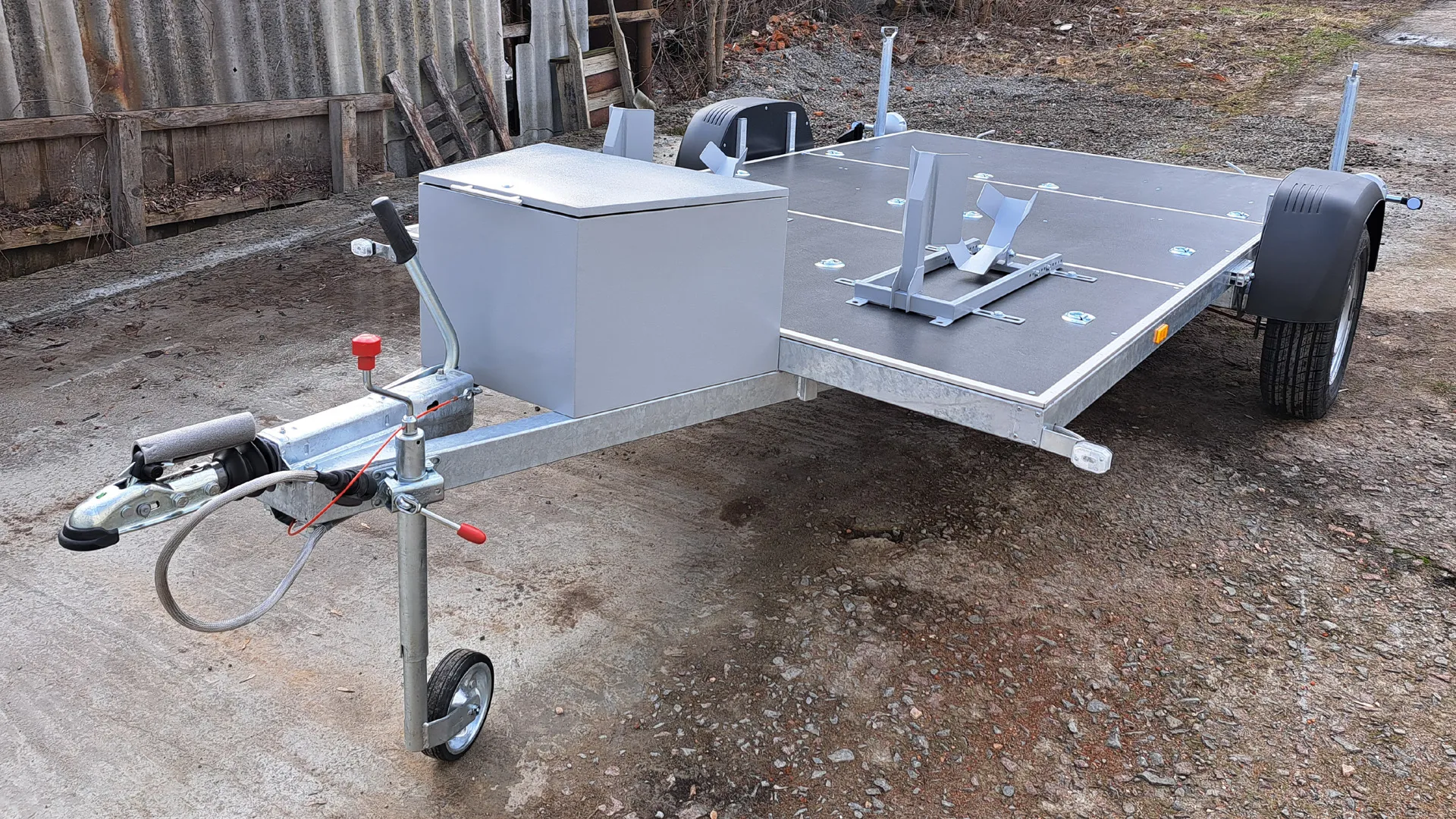

When installing a toolbox (optional) we also add a travel limiter for the handbrake lever.

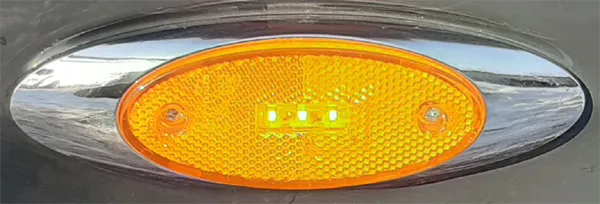

Illumination of the side reflectors (4 pcs) with chrome-plated edges.

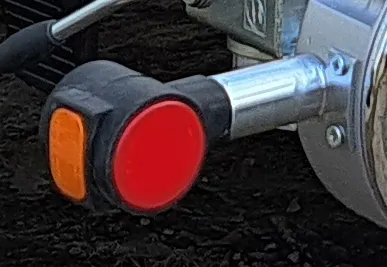

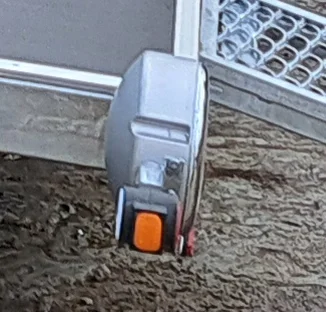

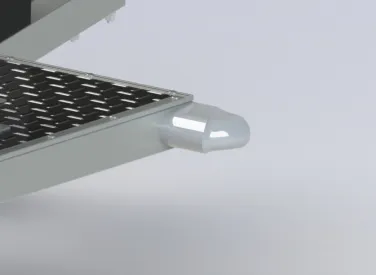

Long-distance marker lights with a soft rubber protective housing (which flexes when hitting an obstacle) and a galvanized extension sleeve are mounted on the tail light housings.

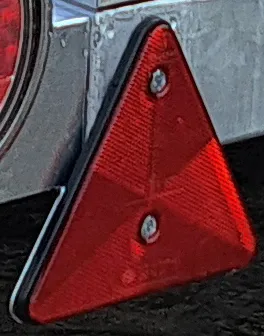

The triangular reflectors are mounted directly on the frame and have additional floor protection made of galvanized sheet steel.
Decorative panel made of galvanized steel covering the drawbar (option).

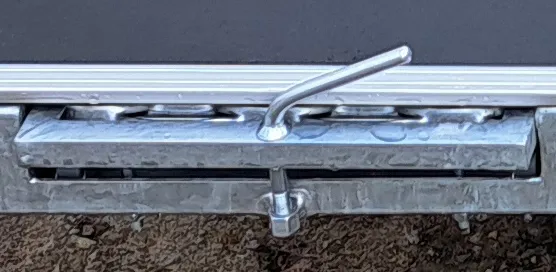

Practical clamp handle for attaching the ramp inside the platform.
Round fog light with chrome frame.

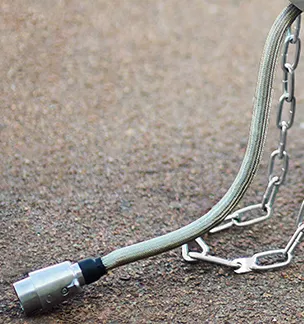

Braided connecting wire made of stainless steel.

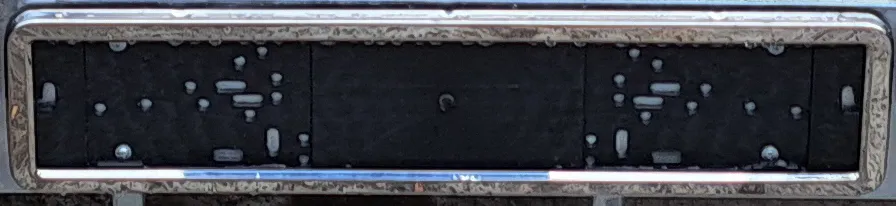

License plate holder car chrome.
STANDARD EQUIPMENT

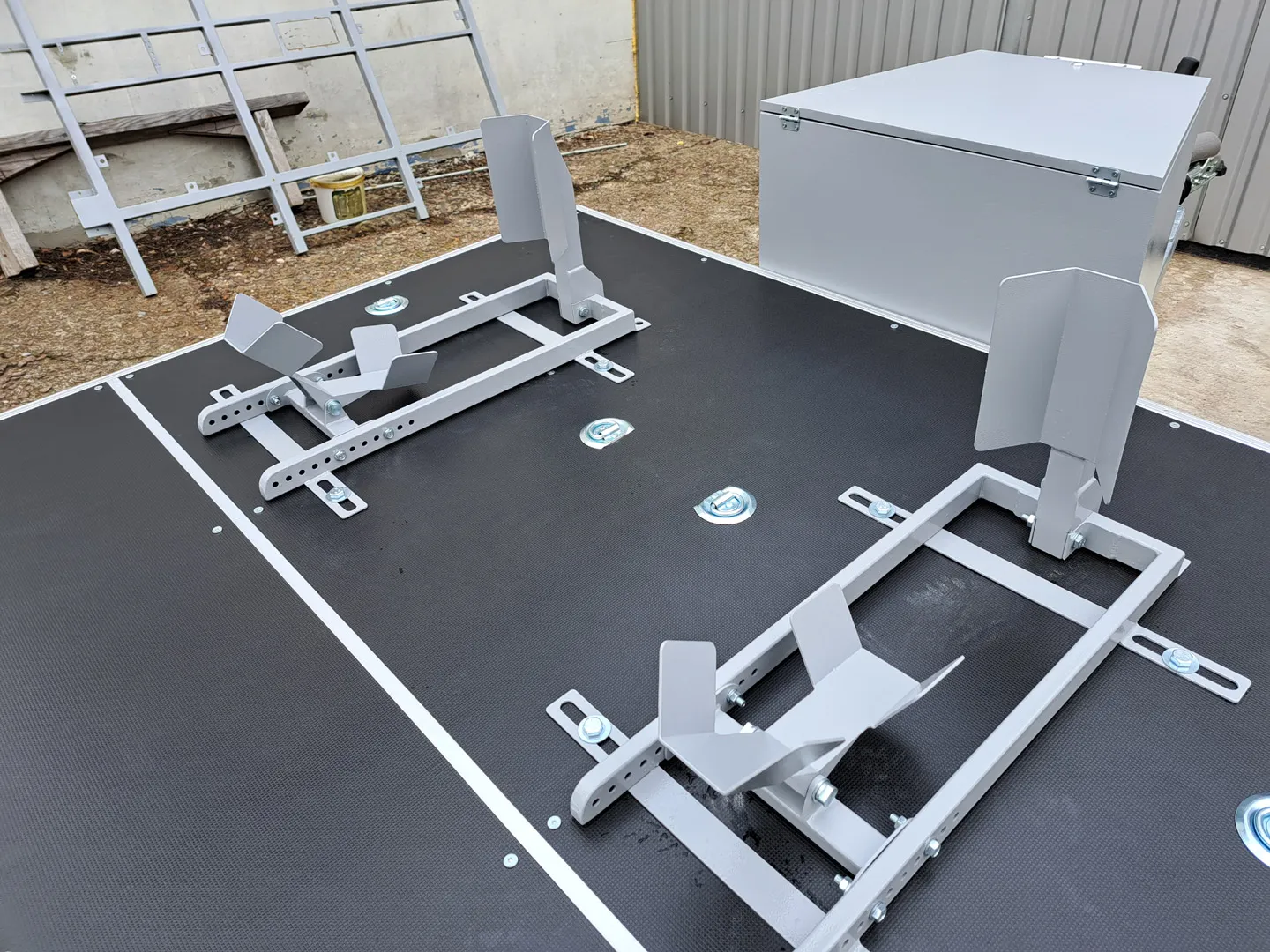

- 2 wheel chocks on 2 motorcycles or 1 buggy (quad or car)
- 1 high performance ramp 1500 mm
- Brakes Torsion bar suspension AL-KO, 1800 kg
- Overrun brake with automatic reversing AL-KO
- Parking brake for securing when stationary AL-KO

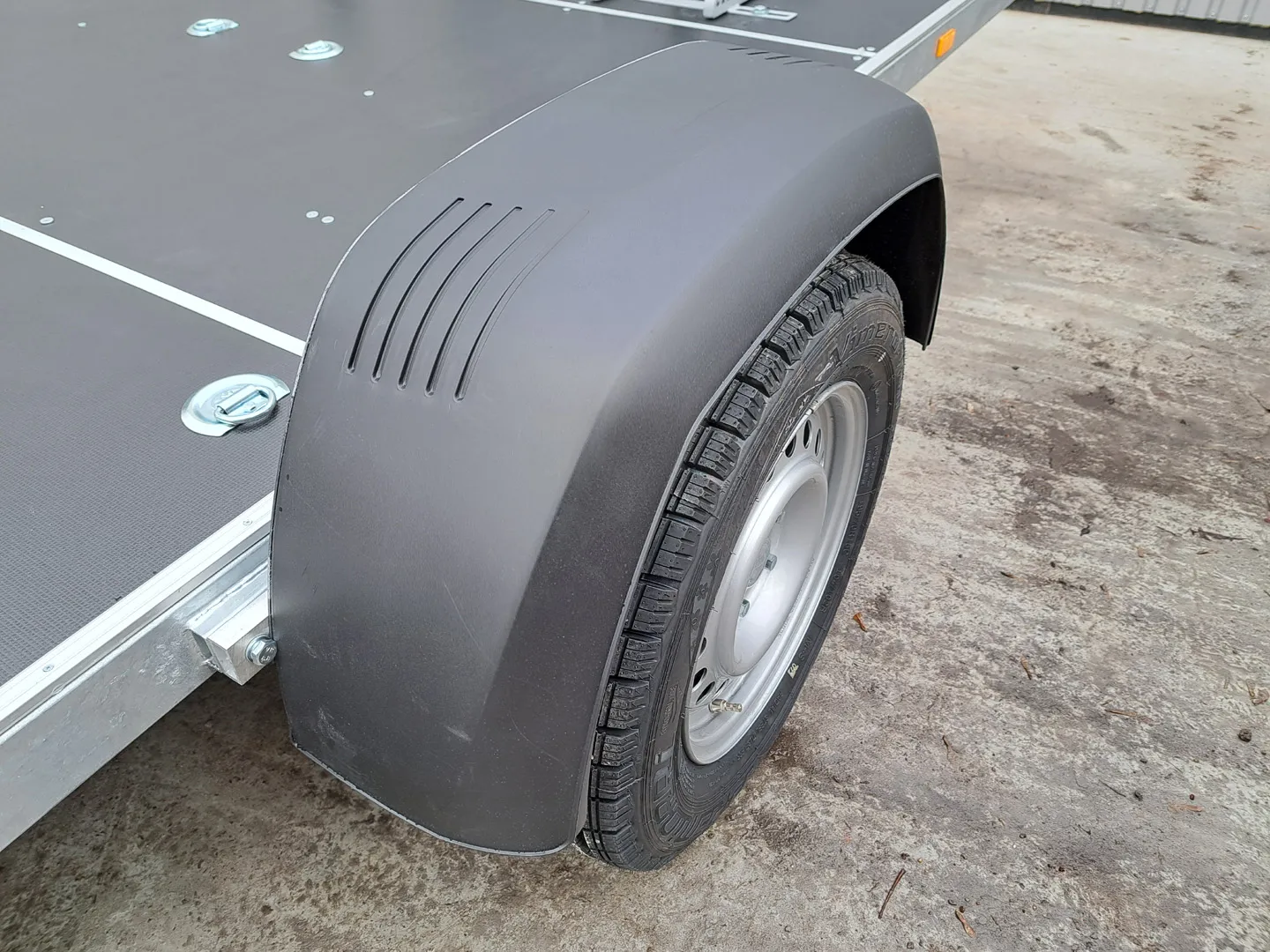

- Robust plastic mudguards AL-KO
- 12 galvanized floor rings for securing the motorcycle
- Chrome plate holder

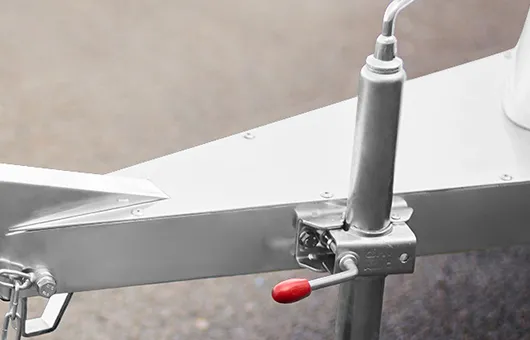

- Jockey Wheel AL-KO
- 2 wheel chock Al-KO
- Floor moisture resistant plywood
- LED taillights with dynamic indicators
- Silver steel rims 15 inch.
- Wing AL-KO (ABC+ASA plastic, UV-resistant)
- Cover plug for the groove in which the 2nd ramp is to be located
- Protected, shock-resistant cabling
- 100 km/h approval
- Removable rear supports
- Covering the wires of the stainless steel connector
- Chrome-plated edges of front lights, SBBR light
- Spare wheel holder
- Floor moisture resistant plywood
- LED taillights with dynamic indicators
- Silver steel rims with 15 inches (with a permissible load of 1800 kg)
- All-season tires
- Galvanized steel safety brackets at front and rear
- Round fog light with chrome frame
- Braided stainless steel connecting wire
- Aluminum corner frames the floor made of moisture-resistant plywood around the entire perimeter
OPTIONS
- Aluminum rims (2 pcs, 2200 kg)
- Shock absorbers (2 pcs)
- Spare wheel with steel rims with spare wheel holder
- Spare wheel with aluminum rims with spare wheel holder
- Floor checker plate aluminum
- Motorcycle-style trailer fender made of fiberglass, dark red
- Motorcycle-style trailer fender made of fiberglass, black
- Heavy-duty ramp 2000 mm
- Package “Car + Buggy + Special Equipment”
- Package “Trike”
- Decorative panel made of galvanized steel covering the drawbar
- Lighting of side reflectors (4 pcs) with chrome-plated edges
- 1 wheel chock
- Package “2 ATVs”
- Large steel toolbox (gray or black color)
SPECS
| DIMENSIONS | |
|---|---|
| Length | 4602 mm |
| Width | 2522 mm |
| Height | 930 mm |
| Distance between the centre of the hooked device and the rear end of the vehicle | 4575 mm |
| Length of the loading zone | 3200 mm |
| Rear slope | 1340 mm |
| Ground clearance | 275 mm |
| MASSES | |
|---|---|
| Technically permissible maximum mass of the loaded means of transport (total weight) | 1800 kg |
| Payload | 1450 kg |
| Mass of the means of transport in the loaded condition | 350 kg |
| Distribution of this mass in axle 1. | 1800 kg |
| Coupling device | AL-KO AK270/B50-X |
| Technically permissible maximum mass of the loaded means of transport (total weight) | 1800 kg |
| Full axle load distribution | 1700 kg |
| Trailer coupling load distribution | 120 kg |
| Top speed | 100 km/h |
| AXLES AND SUSPENSIONS | |
|---|---|
| Axle track | 2190-2210 mm |
| Axle type | Torsion |
| Suspension run | 93 mm |
| Axle resource | Up to 500000 km |
| Variants of the tires | 195/70 R15C |
| Disc variants | R15 6j PCD5x112 ET31-38 Dia67 |
| Brake system | AL-KO 2361: EU-Protokoll 361-0046-97 |
| Trailer brake | AL-KO 251S: E1 55R-01 0227 |
| CLUTCH DEVICE | |
|---|---|
| Claim number or claim sign of linked device | E1 55R-01 2669 |
| Characteristics of the coupling device | GA=2700kg S=120kg D/Dc=21,6kN, overrunning brake. S=120kg D/Dc=24,5kN, |
